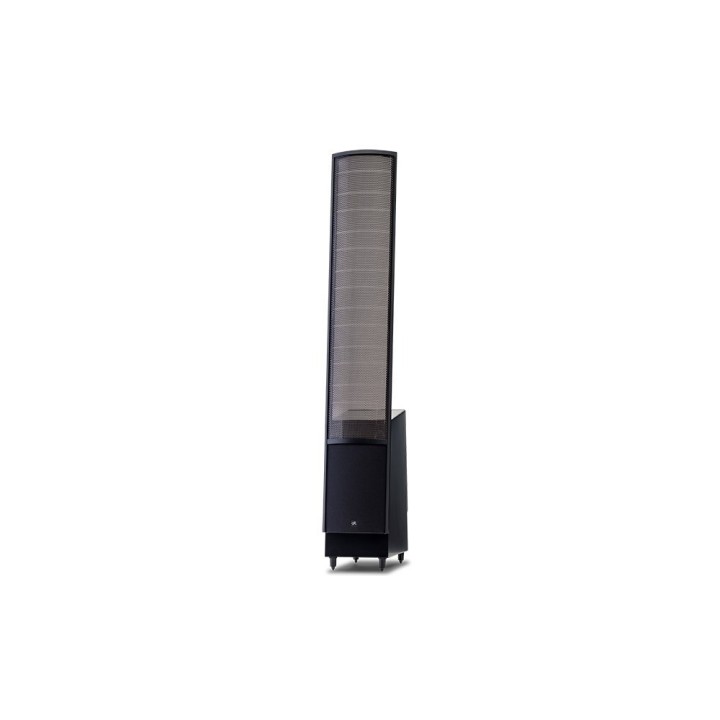

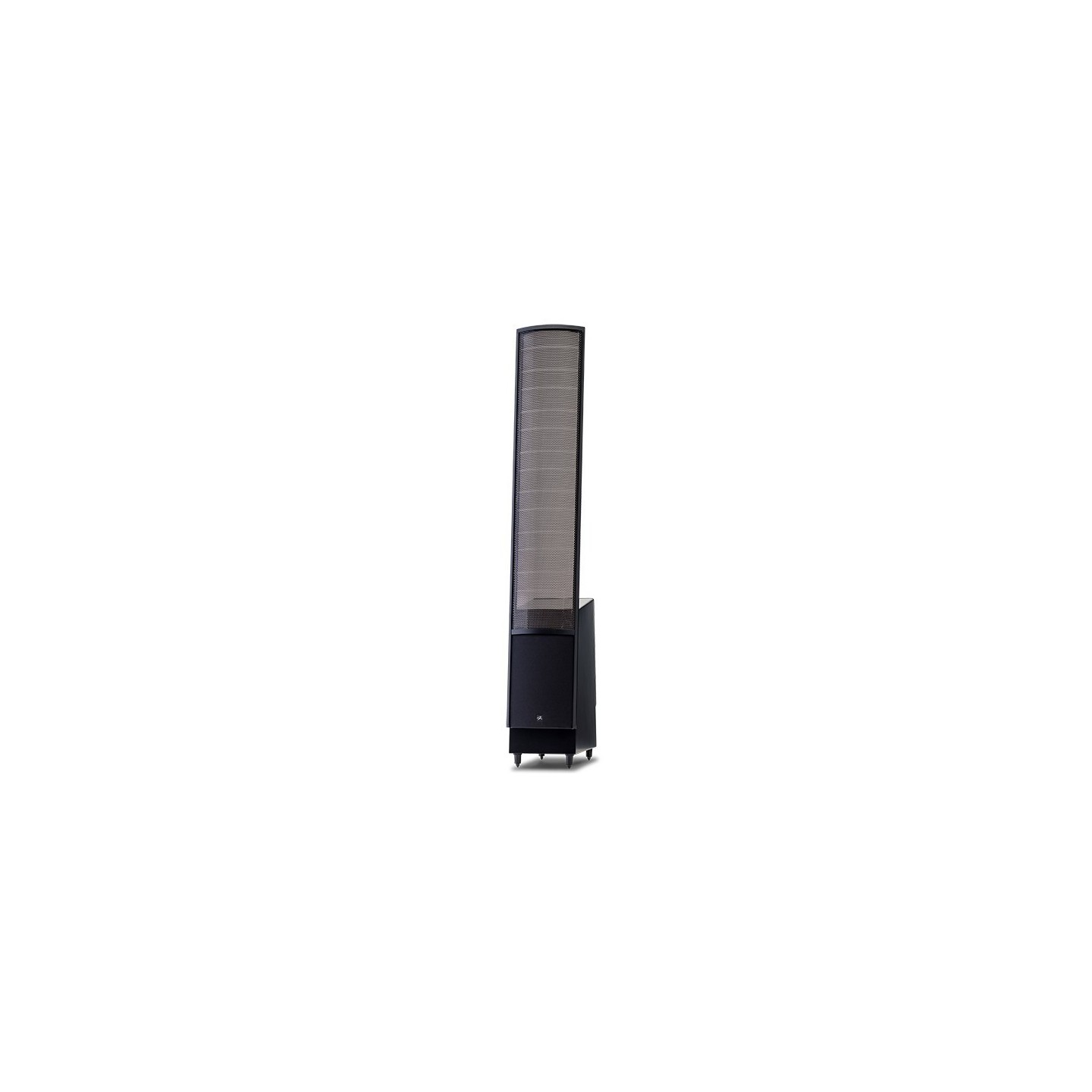

Martin Logan ELECTROMOTION ESL-X

Name: Martin Logan ELECTROMOTION ESL-X
Brand: Martin Logan
SKU: 327
Price: 4690 EUR
Availability: InStock

Martin Logan

Martin Logan esl-x è una diffusore acustico ibrido. Risposta in frequenza: 41–22,000 Hz ±3dB. Peso: 52 lbs. (23,6 kg). Dimensioni: 59,2 × 9,4 × 20,7 in.

4.690 €

Ultimi articoli in magazzino

Nessuna tassa

Martin Logan esl-x

Martin Logan esl-x è una diffusore acustico ibrido.

Risposta in frequenza: 41–22,000 Hz ±3dB.

Peso: 52 lbs. (23,6 kg).

Dimensioni: 59,2 × 9,4 × 20,7 in.

Prestazioni acustiche

Risposta in frequenza: 41–22,000 Hz ±3dB.

Installazione

Peso: 52 lbs. (23,6 kg). Dimensioni: 59,2 × 9,4 × 20,7 in.

Specifiche tecniche

Caratteristica	Valore
Risposta in frequenza	41–22,000 Hz ±3dB
Peso	52 lbs. (23,6 kg)
Dimensioni	59,2 × 9,4 × 20,7 in
Specifiche tecniche
Recommended Amplifier Power	20—400 watts per channel
Horizontal Dispersion	30°
Vertical Dispersion	40" (101,6cm) line source
Sensitivity	91 dB/2,83 volts/meter
Impedance	6 Ohms, 1,6 @ 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency	400Hz
High Frequency Transducer	XStat™ CLS™ electrostaic transducer » Panel Dimensions: 40" x 8,6" (102 x 22cm) » Radiating Area: 344 in² (2,244 cm² )

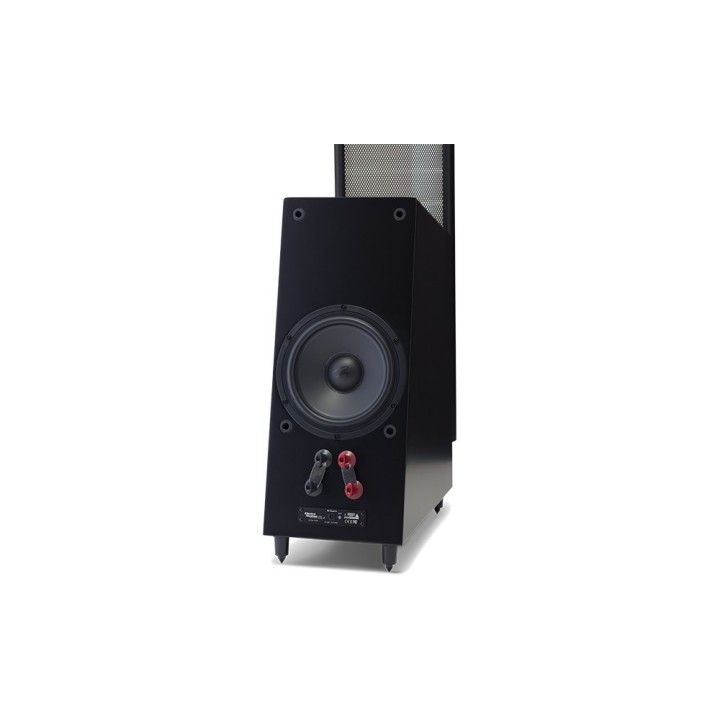

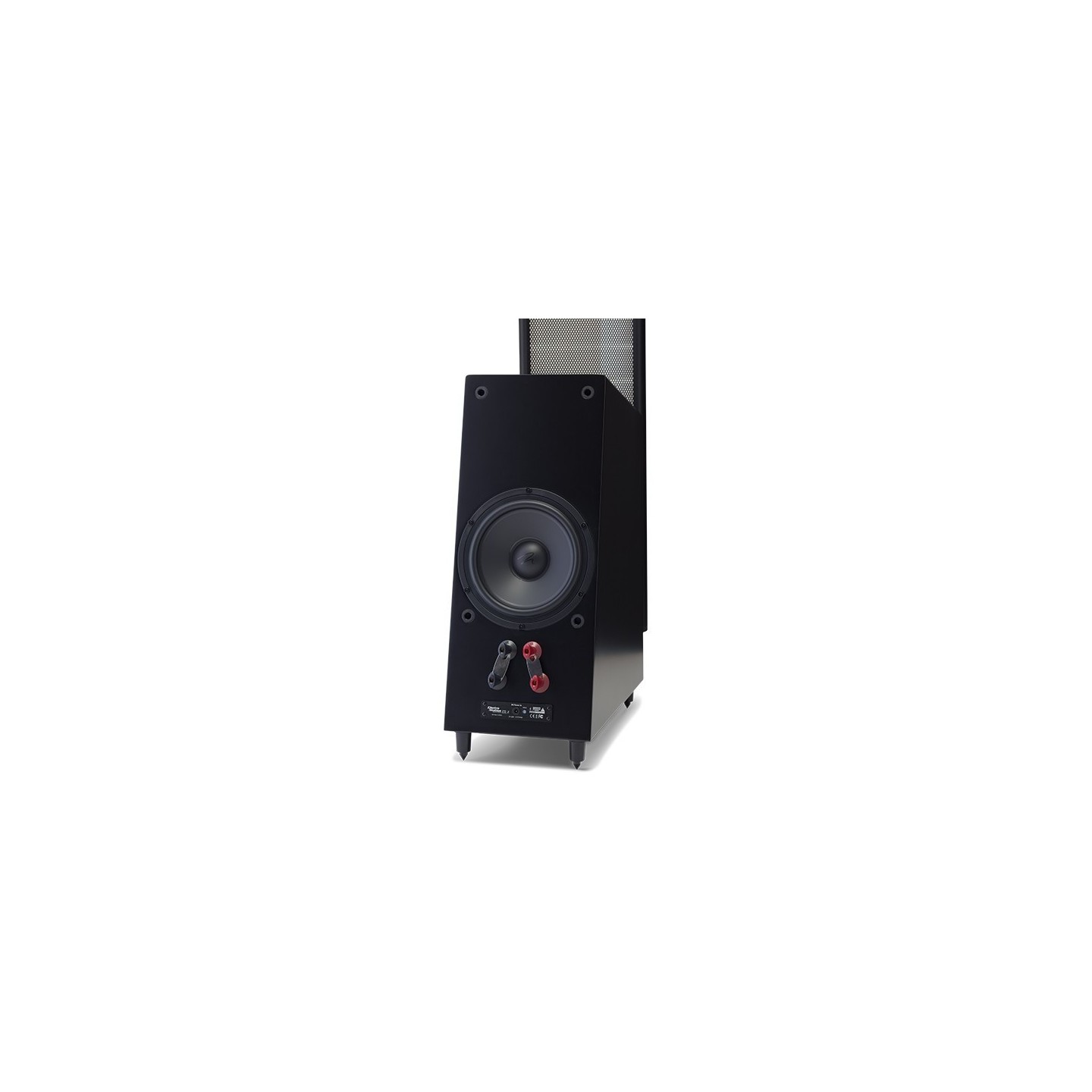

Low Frequency Transducer	Two 8” (20,3 cm) high excursion, high-rigidity paper cones with extended throw driver assembly, non-resonance asymmetrical chamber format, bass reflex.
Components	Custom-wound audio transformer, air core coils, large steel laminate inductors, polyester capacitors, and low DF electrolytic capacitors
Inputs	Custom 5-way bi-wire tool-less binding posts
